Transmissor de sinal WiFi subaquático tipo contato DIVEVOLK Sealink para conectar smartphone e câmera

• Turn the smartphone to and underwater monitor of the camera
• Remote control the parameters of the camera
• Multi-angle view finder
• Adapt to most of the camera housing

Modelo # AW-11

Frequência: 2,4G/5G/5,8G

Ganho de sinal: 6dbi

À prova d'água: 80 metros

Comprimento do fio: 30cm

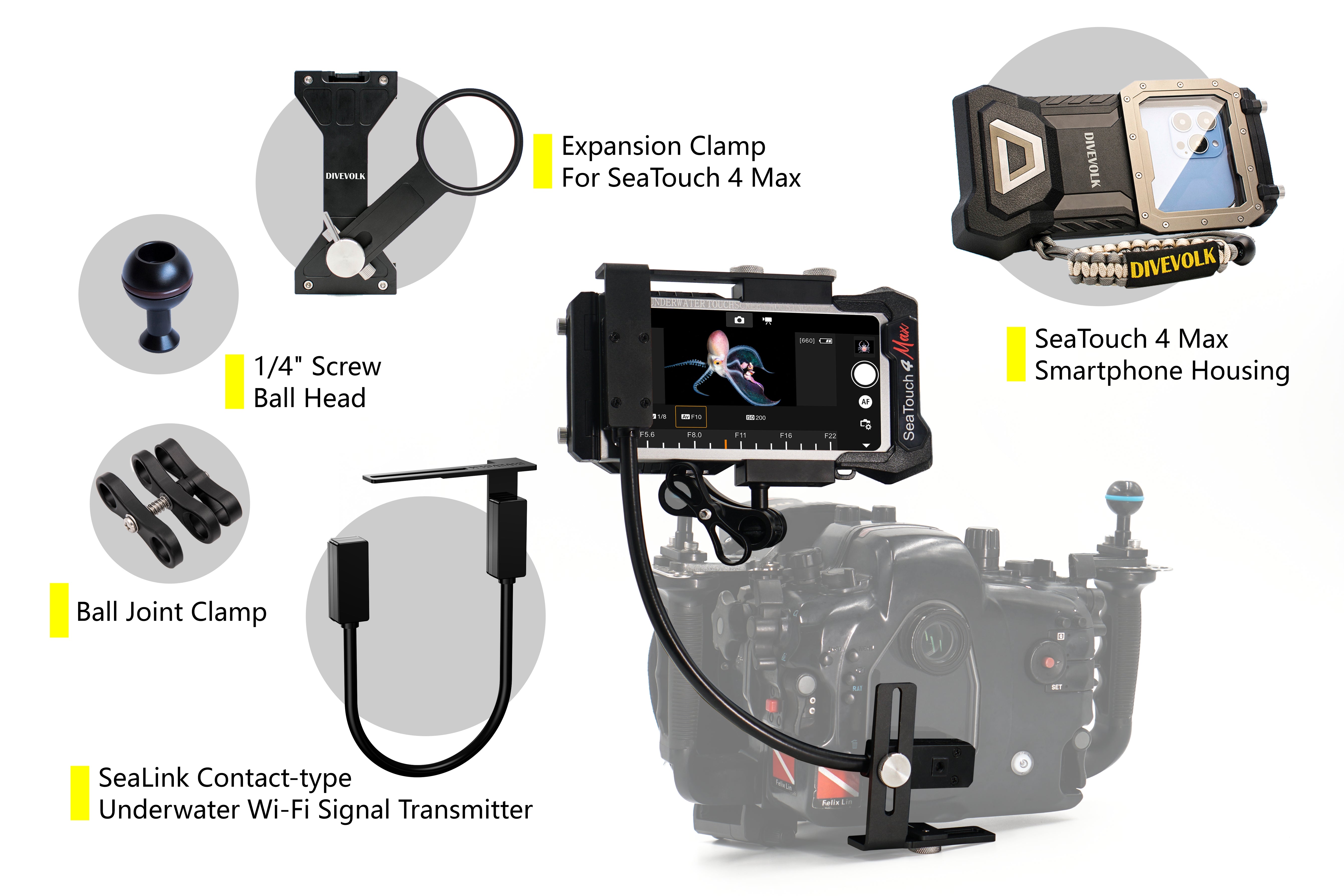

O que está incluído?

• The SeaLinkTM contact-type underwater Wi-Fi signal transmitter
• L shape bracket
• I shape bracket
• M6 screw x 4 pieces
• 1/4 screw x 1 piece
•  Gasket x3 pieces
• Quick Start Guide
• EVA packing case

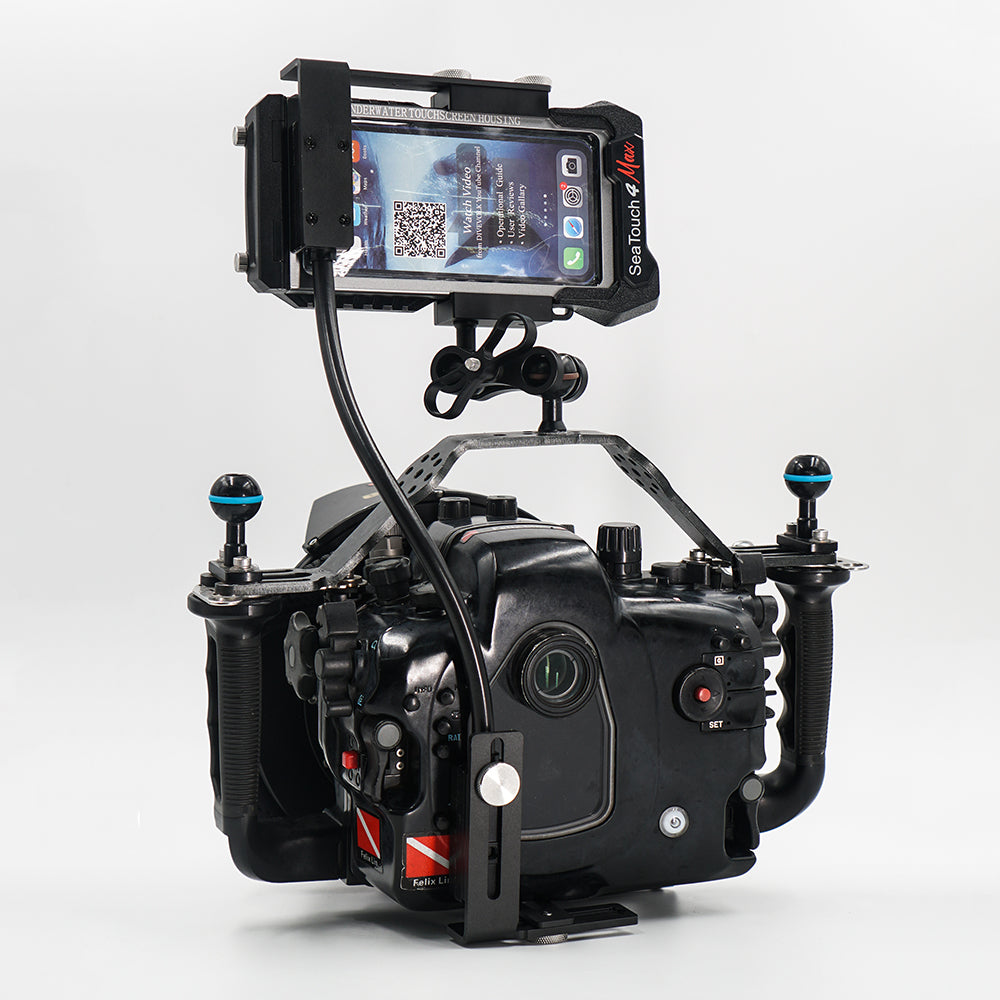

1. Use two M6 screws to fix the sensor on the expansion clamp of the SeaTouch housing
2. Position the sensor on the edge of The SeaTouch housing
3. Use a M6 screw to fix the other sensor on the L shape bracket
4. Use a M6 screw to fix the L shape bracket on the I shape bracket
5. Use the 1/4 screw to fix the I shape bracket on the bottom of the camera housing

• Please position the sensor within the screen area of camera housing in case the aluminum alloy camera housing isolates the Wi-Fi signal.
• Do not over-bend the wire, otherwise it will be damaged or affect the waterproof performance.
• The SeaLinkTM Contact-type Wi-Fi signal transmitter needs to be installed on the expansion clamp of the SeaTouch housing.
•  It might be slight delay of the image transmission when using the Wi-Fi connection, the transmission status will vary depending of the performance of different camera.
• It is recommended to complete the pairing and connection of the smartphone and the camera on land before launching into the water.

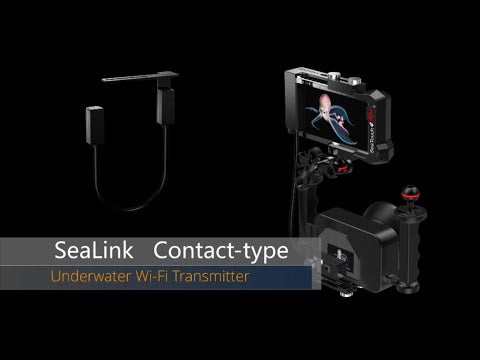

•  In order to use this product better, please watch the operation video before further use.
