The phone looked perfect on the boat. Five meters down, a milky patch spreads across the lens glass and every frame turns soft. Fog in an underwater phone housing is common, and most of the time it is not a leak. It is moisture that was sealed in with the phone, meeting glass that the water has cooled. But fog has four possible sources, and one of them is a real seal problem, so the first job is working out which one you are looking at.
The fix for ordinary fog happens on land: seal the phone in dry air, keep it cool, and fit a fresh desiccant pad. Below is how to tell the four causes apart, how to set up a SeaTouch 6 Pro so fog is less likely, and what to do when it appears anyway. No housing can promise it will never fog, but you control how much moisture goes in with the phone and how big a temperature change it has to cope with.
Inside or Outside? Check That First
Before diagnosing anything, find out which side of the glass the moisture is on. Water beads and smears on the outside are not fog in the housing sense. They are an optics problem, common at the surface and in split shots where the lens glass keeps crossing the waterline. A mark that moves with the water, or clears when you sweep the outside, is external. A haze that stays fixed while water moves across the glass is on the inside.
Look at the camera preview as well as the glass itself. Internal fog usually shows as an even softness or a bright veil over the whole frame. External droplets tend to show as distinct blobs or streaks in one area.
Four Causes of Internal Fog
| Cause | What it looks like | What it means |
|---|---|---|
| Humid air sealed in | An even, fine haze on the inside of the lens glass, usually soon after entry or on descent. | A loading problem, not a seal problem. Load in drier air next time and use a fresh desiccant pad. |
| Temperature difference | Haze that forms as the housing moves from warm air into cold water, or at a thermocline, and is worse after long video recording. | Not a seal problem. Reduce heat before sealing and give the pad less work to do. |
| Residual water | Droplets or streaks near one spot, often after loading with wet hands or a phone that was rinsed or splashed. | Water was carried in during loading. Dry the phone, the housing and your hands before the next closure. |
| Actual leakage | Free water, droplets that grow during the dive, water collecting at the bottom, or salt residue after drying. | Possible seal problem. Stop using the housing until it has been checked. |
The first three share a mechanism: water already inside the housing condensing on the coldest surface. Only the fourth involves water coming through a seal, and that is the one that changes what you do next.
Why a Sealed Housing Fogs Without Leaking
Air always holds some water vapor. The US National Weather Service describes the dew point as the temperature at which that vapor turns into liquid droplets, a process called condensation. When you close a housing, you seal in a small pocket of air at whatever humidity surrounded you at the time. On a tropical boat deck that pocket can hold a lot of moisture.
Underwater, the lens glass is in direct contact with the water and cools first. If the glass drops below the dew point of the air trapped inside, droplets form on it. The phone makes this worse: it keeps producing heat while recording, which warms the air inside, and that warm, moist air meets cold glass. Going from a hot deck into cooler water, or crossing a thermocline mid-dive, adds a bigger temperature step for the same moisture.
None of that requires water to cross a seal, which is why a housing can fog on the very first dive after a perfect empty-housing check.
What the SeaTouch 6 Pro Desiccant Slot Does
The SeaTouch 6 Pro has a built-in desiccant pad slot, and desiccant pads come in the box. The pad absorbs moisture from the air sealed inside the housing, which lowers the dew point of that air and makes it harder for droplets to form on the lens glass. Pads drop into the slot without tools and swap in seconds, so putting in a fresh one before each dive is practical when the water is much colder than the air.
A pad has limits. Pads are single-use consumables , once spent or damp they cannot be restored by drying; always replace with a fresh one.It manages moisture that is already inside, so it cannot soak up a splash carried in on a wet phone, and it does nothing for the seal. A pad left out in humid air for hours will also be partly spent before the housing closes. Use the pads made for the slot, and ask DIVEVOLK technical support before substituting loose silica sachets, which can shift and end up near a sealing surface.
The slot is one of several changes on the 6 Pro covered in SeaTouch 6 Pro vs. SeaTouch 4 Max Plus.
SeaTouch 6 Pro Setup to Reduce Fog

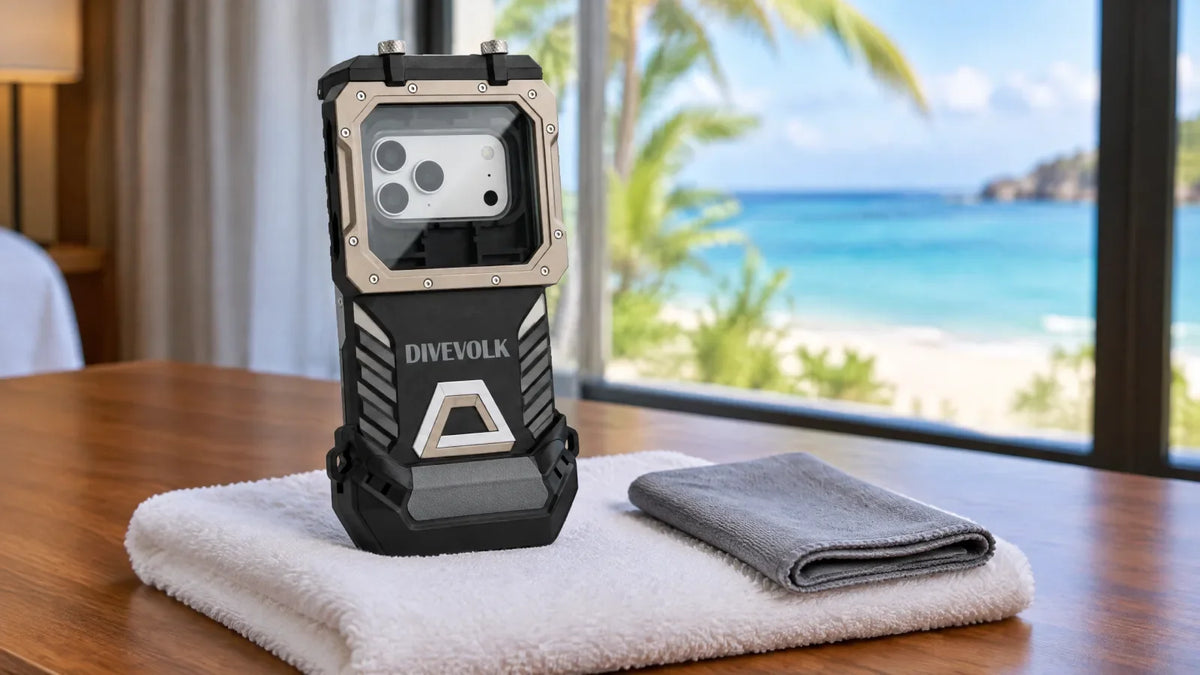

- Load in dry air. Seal the phone indoors, in an air-conditioned room if you have one, rather than on a deck in spray. The air you seal in is the moisture you take down with you.
- Start with a dry phone. Check around the camera lenses, speaker grilles and charging port. A phone that was splashed on the way to the boat can carry water into the housing.
- Dry the housing and your hands. Wipe the inside of the housing and the inside of the lens glass with a clean, dry, lint-free cloth. Dry your hands before you touch the phone or the seal.
- Let a hot phone cool first. A phone that has just been charging, navigating or sitting in the sun adds heat inside the housing. Let it cool in shade before sealing. Do not chill it in a fridge or cooler; that just moves the condensation problem to the phone.
- Fit a fresh desiccant pad. Take it out of its packaging at the last moment and seat it in the built-in slot.
- Inspect the seal line and close. Check for hair, lint and sand before closing, as you would before any dive.
- Keep the closed housing in shade. A housing that bakes on deck before entry starts the dive with the biggest possible temperature drop.
Moisture control and leak prevention are separate jobs, and passing one tells you nothing about the other. The seal side is covered in the SeaTouch 6 Pro maintenance guide and our six essential housing checks.
Do not treat the lens glass with mask defog, toothpaste, dish soap or household glass coatings, inside or out, unless the manual approves it. Products that work on a tempered mask lens can leave residue or damage a coating, and anything that migrates onto a sealing surface is a bigger problem than fog.
When Fog Appears Underwater
If you see haze on the inside of the glass, stop recording. Video keeps the phone working hard, and the heat feeds the problem. Look closely without opening anything. A stable, fine film with no free water is consistent with condensation. You can switch to occasional stills if the image is usable, or simply put the phone away and enjoy the dive.
If you see droplets growing, water moving around inside, or water collecting at the bottom of the housing, end the camera task. Keep the housing closed, keep your attention on buoyancy, breathing and your buddy, and finish the dive on your normal plan. Never rush an ascent or skip a safety stop to protect a phone.
Split shots deserve a separate note. When you use a dome lens at the surface, water beads on the outside of the dome are the usual cause of soft or spotted frames, and they come and go with each wave. That is not internal fog. Our guide to over-under shots with the DIVEVOLK dome port covers keeping the outside surface clean.
After the Dive: Diagnose Before the Next Load
Haze only, no free water
Rinse the housing closed, following our post-dive housing cleaning steps, dry the outside, and open it in a dry place. Take the phone out and check it is dry. Look inside the housing for any droplets that remain once the glass warms up. If everything is dry, the cause was almost certainly humid air, heat or residual water at loading. Remove the used pad, let the housing air dry in shade, and next time load in drier air with a fresh pad and a cooler phone.
If the phone needs charging, make sure its port is dry first. Apple's liquid-detection guidance says to wait until the connector and cable are dry and warns against heat, compressed air and rice. Android owners should follow their own phone maker's advice.
Free water, growing droplets or salt residue
Treat it as a possible leak. Get the phone out somewhere dry, dry it according to its maker's guidance, and do not put the housing back in the water with a phone in it. Inspect the seal line and the surface it presses against for hair, sand, nicks or anything out of place. Then run an empty-housing water check: close it with no phone, hold it underwater in a sink or tub for a few minutes, dry the outside, open it and look for water. If water appears, or if you cannot find an obvious cause, contact technical support before diving it again.
Fog that keeps coming back
If you are loading in dry air with a dry phone, a cool phone and a fresh pad, and the glass still fogs dive after dive, something is adding moisture you have not found. Stop experimenting underwater and ask support to look at it with you.
Between Dives
The surface interval is where a lot of fog starts, because it is where people open housings in humid air. If the phone does not need to come out, keeping it sealed avoids taking on a fresh charge of deck air. If it does need to come out, plan to reload in the driest spot available and fit a fresh pad. We cover that decision, including heat and charging, in keeping your phone in its SeaTouch 6 Pro between dives. The phone's own heat limits also matter here; Apple's temperature guidance explains what a phone does when it gets too warm.
The Short Version
Find which side of the glass the moisture is on. Internal haze with no free water comes from humid air, temperature change or water carried in during loading, and all three are fixed on land: dry air, a dry and cool phone, dry hands, a fresh pad in the 6 Pro's built-in slot, and shade before entry. Free water or growing droplets mean a possible leak, and the housing stays out of the water until it has been checked. If you are setting up a new 6 Pro, our SeaTouch 6 Pro setup guide builds the pad and dry-loading habits in from the first closure.
